BitLocker recovery keys are critical for accessing encrypted drives when standard authentication methods fail. Storing these keys securely and centrally in Active Directory (AD) simplifies management and ensures quick recovery during emergencies. This guide explains how to configure Group Policy to automatically save BitLocker recovery keys directly into Active Directory.

Method 1: Using Group Policy to Automatically Store BitLocker Keys in Active Directory

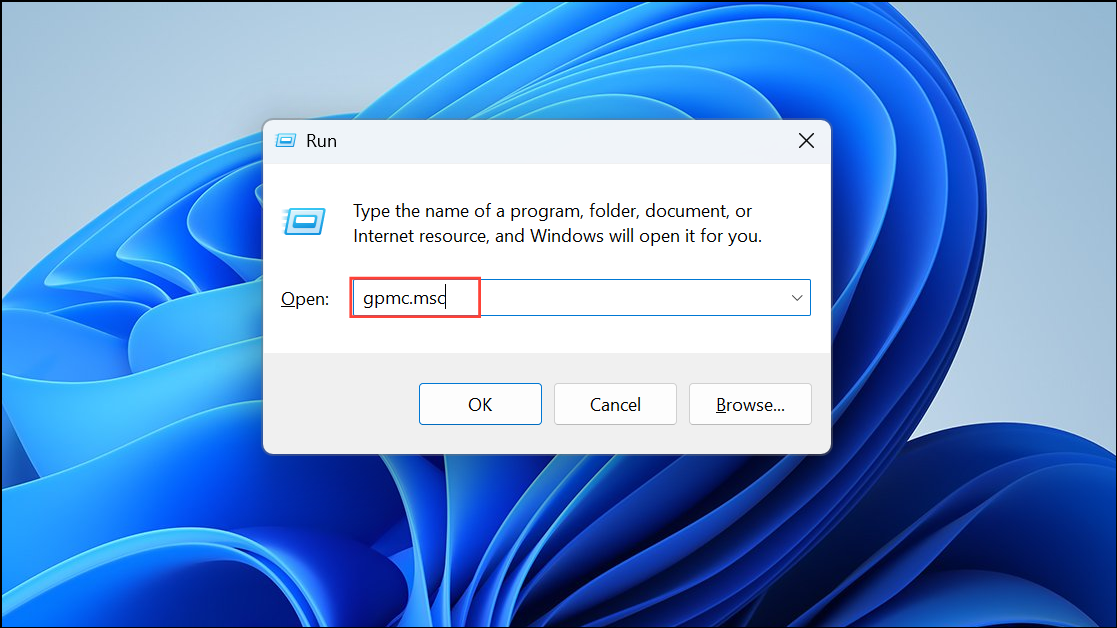

Step 1: Open the Group Policy Management Console (GPMC) by pressing Win + R, typing gpmc.msc, and pressing Enter.

Step 2: Navigate to the Organizational Unit (OU) where the computers needing BitLocker key backup reside.

Step 2: Right-click the OU and select "Create a GPO in this domain, and Link it here." Name the new GPO something clear, like "BitLocker Key Backup Policy."

Step 3: Right-click the newly created GPO and select "Edit." In the Group Policy Management Editor, navigate to Computer Configuration > Policies > Administrative Templates > Windows Components > BitLocker Drive Encryption > Operating System Drives.

Step 4: Locate and double-click "Choose how BitLocker-protected operating system drives can be recovered." Set this policy to "Enabled." Next, check the box labeled "Save BitLocker recovery information to Active Directory Domain Services (Windows Server 2008 and later)." You can also optionally select "Do not enable BitLocker until recovery information is stored to AD DS," ensuring encryption won't proceed without successful key backup.

Step 5: Click "Apply," then "OK" to save your settings. Repeat the same configuration under Fixed Data Drives and Removable Data Drives if needed.

Step 6: Close the Group Policy Management Editor. To enforce the policy immediately on client computers, run gpupdate /force from an elevated command prompt on each client, or wait for the policy to apply naturally during the next Group Policy refresh cycle.

Step 7: Verify that BitLocker keys are successfully stored in Active Directory by opening Active Directory Users and Computers, going to the computer's object properties, and selecting the "BitLocker Recovery" tab. You should see the recovery keys listed there.

Method 2: Manually Backing Up BitLocker Keys to Active Directory

If you prefer not to use Group Policy, you can manually back up BitLocker recovery keys into Active Directory using the command-line tool manage-bde. This method is suitable for small-scale environments or one-off backups.

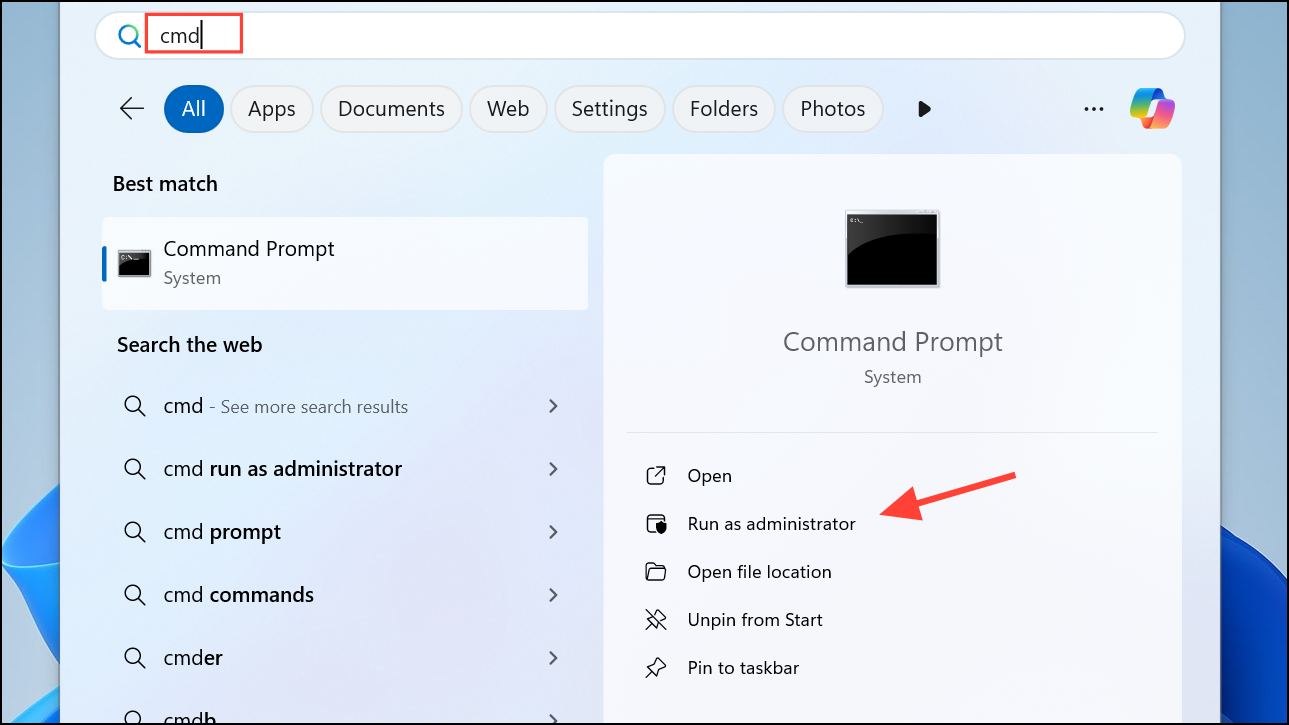

Step 1: On the computer with BitLocker enabled, open an elevated command prompt by typing "cmd" in the Start menu, right-clicking "Command Prompt," and selecting "Run as administrator."

Step 2: Type the following command to back up the BitLocker recovery key to Active Directory:

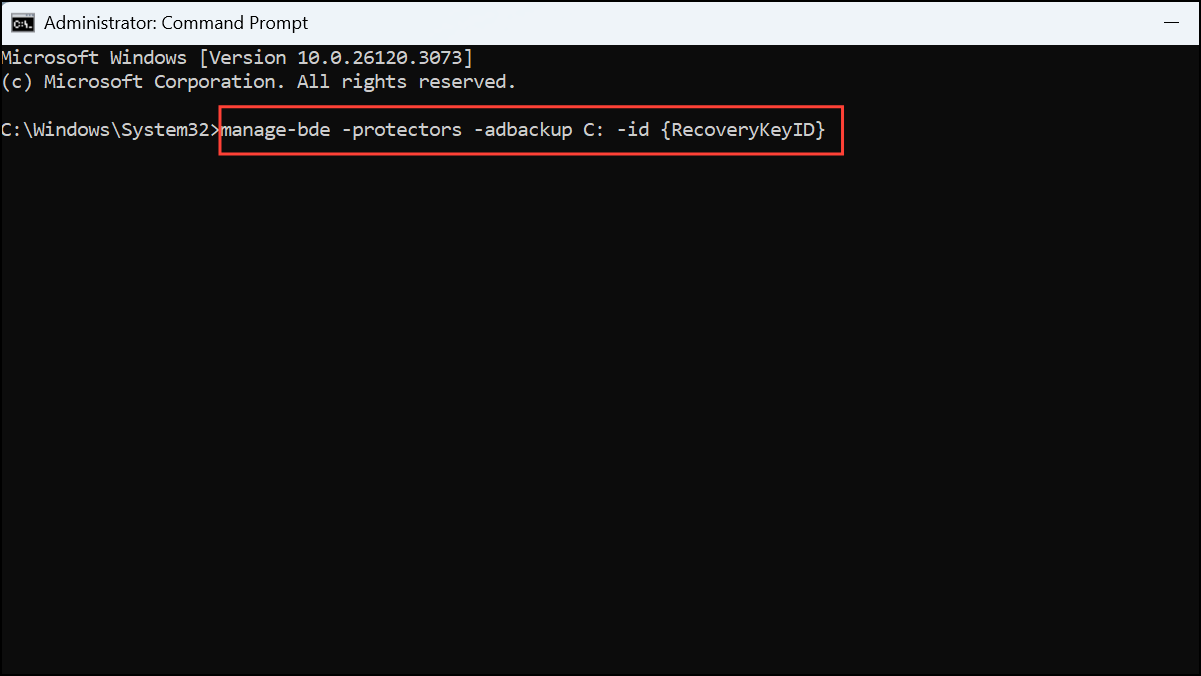

manage-bde -protectors -adbackup C: -id {RecoveryKeyID}

Replace C: with your encrypted drive letter, and replace {RecoveryKeyID} with your actual recovery key ID, which you can find by running:

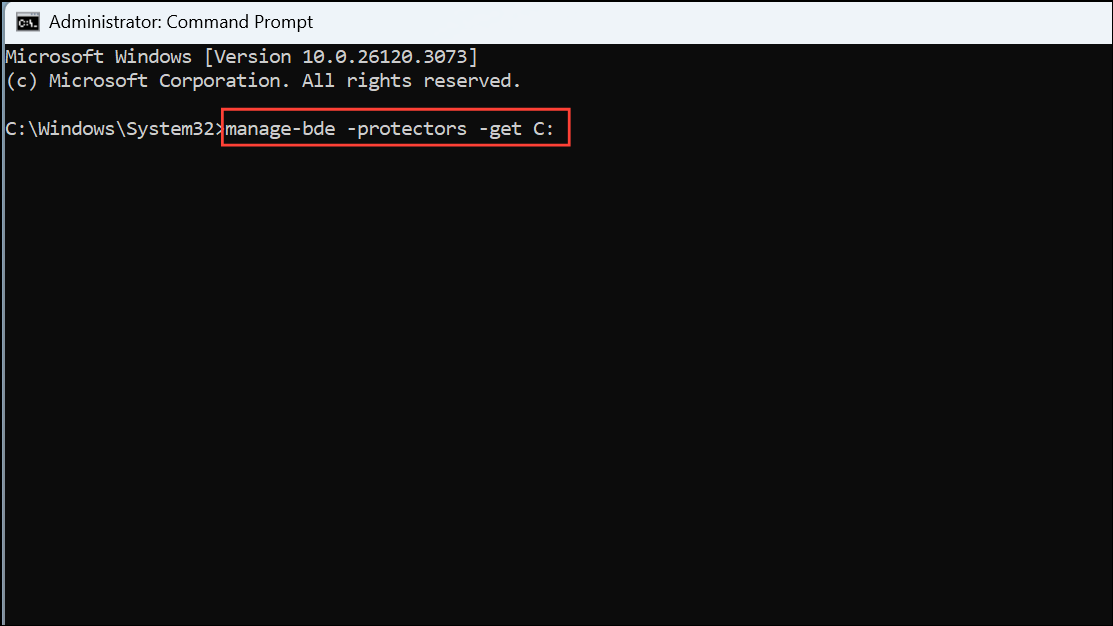

manage-bde -protectors -get C:

Step 3: After executing the backup command, confirm the recovery key is stored successfully by checking the computer object's "BitLocker Recovery" tab in Active Directory Users and Computers.

Regularly verify that BitLocker recovery keys are correctly stored in Active Directory to prevent data loss and ensure seamless recovery when you need it most.
